Water Treatment Plants (WTP)

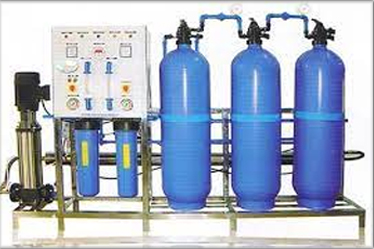

Water Treatment Plants Reverse Osmosis (RO) Plants

Reverse Osmosis {RO) Is A Water Purification Technology Based On "Membrane Filtration" That Can Remove Many Types Of Molecules And Ions From Solutions. Hence, This Technology Is Used In Both Industrial Processes As Well As Production Of Drinking (Potable) Water. It Is Also Widely Used In Waste Water Treatment. We provide RO plant of capacity ranging from 25 LPH 10,000 LPH meeting commercial as well as industrial requirement.

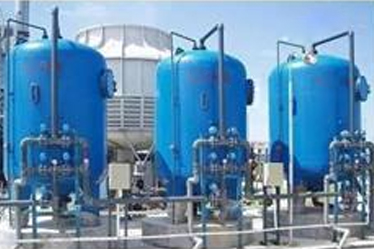

Pressurized Sand / Activated Carbon Filter

Pressurized Sand Filter Is Recommended For The Removal Of Suspended & Visible Impurities Like Sand. Silt, Heavy Metals Etc. It Reduces Turbidity And TSS Of Water. It Contains Graded Sand Media Inside Pressure Vessel.

ACTIVATED CARBON FILTER Removes Organic Matter, VOC, Chlorine And Hundreds Of Man Made Chemicals Through Adsorption. It Contains Activated Carbon (Higher The Iodine Value, Better The Quality) Supported By Gravels & Pebbles Inside Pressure Vessel Available In Range Of Diameters To Meet Different Requirements Of Flow Rate, Output & Quality.

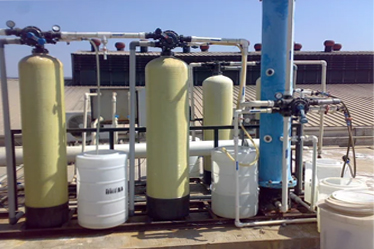

Demineralization (DM) / Deionisation (DI) Plant

Mineralized Water Treatment Plant Is Based On Lon Exchange Technology. It Comprises Of Minimum Two Vessels Filled With Cation And Anion Exchange Resin Respectively. It May Remove 99% Of Ions Present In Water & Hence Reduce TDS / EC By 99%

Mixed Bed Plant Contains Single Vessels Filled With Cation As Well As Anion Exchange Resin This System Works As A Polisher Unit And Provides Ultra Pure Water Of IP Grade. Available In Range Of Diameters To Meet Different Requirements Of Flow Rate, Output & Quality.

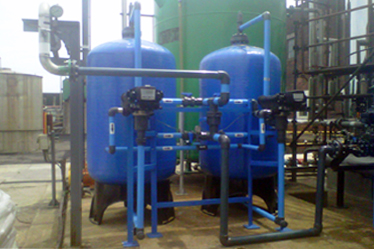

Water Softening Plants

The presence of Ca & Mg(know as Hardness) lead to the formation of scale which in turn results into clogging of pipelines & fixtures, scaling of boiler tube, Heat Exchanger, etc.

This softener contains cation Exchange Resin which removes Cations ( Positively Charged-ions ) From The Water (i.e. , Reduces This Hardness In Feed water) & Prevent Scale Formation Which In Turn Ensures Optimum Heat Transfer & Efficient Performance.
Available In Range Of Diameters To meet Different Requirements Of Flow Rate, Output & Quality.

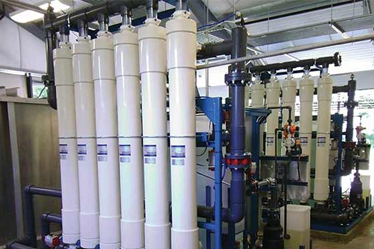

Micro filtration / Ultra filtration

Micro filtration Is Done Trough Micron Cartridge (MC) Filter Or Bag Filter. It Can Filter Water Up To 0.1 Micron Particle Size. It Removes Suspended Solids Completely And Reduces Turbidity To Less Than 1 NTU Moc is SS, PP, NYLON.

Ultra filtration Is Pressure Driven Membrane Process Technology Which Filters Water Up To 0.01 Micron Size. Typically, It Removes High Molecular- Weight Substances Colloidal Materials, Silt (SDI), And Organic As Well As Inorganic Polymeric Molecules. It Not Only Serves As A Pre-Treatment Before RO Plant But Also To Produce Potable Water.

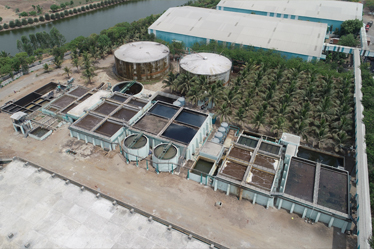

Sewage Treatment Plants (STP)

Sewage treatment, or domestic wastewater treatment, is the process of removing contaminants from wastewater and household sewage, both runoff (effluents) and domestic. It includes physical, chemical, and biological processes to remove physical, chemical and biological contaminants.

Its objective is to produce a waste stream (or treated effluent) and a solid waste or sludge suitable for discharge or reuse back into the environment. This material is often inadvertently contaminated with many toxic organic and inorganic compounds

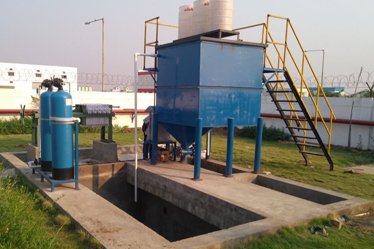

Effluent Treatment Plants (ETP)

Effluent Treatment Plants or (ETPs) are used by leading companies in the pharmaceutical and chemical industry to purify water and remove any toxic and non toxic materials or chemicals from it. These plants are used by all companies for environment protection.

An ETP is a plant where the treatment of industrial effluents and waste waters is done. The ETP plants are used widely in industrial sector, for example, pharmaceutical industry, to remove the effluents from the bulk drugs.

During the manufacturing process of drugs, varied effluents and contaminants are produced. The effluent treatment plants are used in the removal of high amount of organics, debris, dirt, grit, pollution, toxic, non toxic materials, polymers etc. from drugs and other medicated stuff. The ETP plants use evaporation and drying methods, and other auxiliary techniques such as centrifuging, filtration, incineration for chemical processing and effluent treatment.

Maintenance & Associated Services

Keeping In Tune With Our Business Propositions, To Be A True Provider Of Clear And completed Solution, We Consider Service To Be A Crucial Part Of The Treatment Program. Our Professionals Provide Below-Mentioned Services In Order To Test And Stabilize Initiatives:

• System Survey
• Program Selection & Recommendations
• Application & Monitoring
• Monthly Trend Reports
• Treatment Review & Audit
• Program Optimization
